Omschrijving

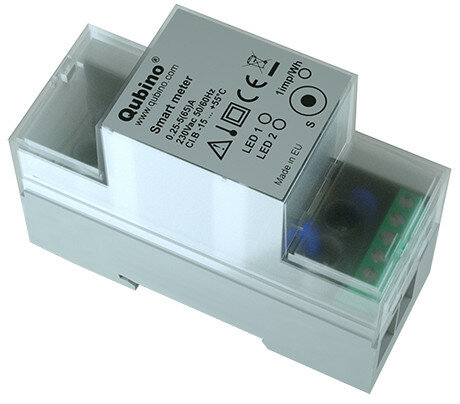

Qubino Zwave smart meter
Verbruiksmeting, zichtbaar in je control station (Fibaro HCL3, HC2, Domoticz, Homey, etc).
De perfecte Z-Wave Smart Energy Meter (1 fase).
Het meet het energieverbruik van je netwerk.
Rapporteert in W en kWh, V, A, var, kWh import, kWh export, kVAh en kvarh.
Main terminals (LI, NI, Lo, No) | |
Contacts capacity: | 1.5 ... 16 (25) mm2 |
Connection screws: | M5 |
Max torque: | 3.5 Nm (PZ2) |
Optional terminals (1,2,4,5) | |
Contact capacity: | 0.05 ... 1 (2.5) mm2 |
Screws: | M3 |
Max torque: | 0.6 Nm |
Measuring input: | |
Type (connection): | single phase (1b) |
Reference current (Iref): | 5 A |
Maximum current (Imax): | 65 A |
Minimum current (Imin): | 0.25 A |
Starting current: | 20 mA |
Voltage (Un): | 230 V (±20%) |
Power consumption at Un: | < 2 W |
Nominal frequency (fn): | 50 and 60 Hz |
Accuracy: | |
Active energy and power: | |
Standard EN 62053-21: | class 1 |
Standard EN 50470-3: | class B |
Reactive energy: | |
Standard EN 62053-23: | class 2 |
Optical communication: | |
Type: | IR - used to control BICOM432-40-WM1 |
Input (1): | |
Rated voltage: | 230 V (± 20%) |
Input resistance: | 450 kOhm |
Safety: | |
Indoor Meter: | yes |
Degree of pollution: | 2 |
Protection class: | II |
AC voltage test: | 4 kV |
Installation Category: | 300 Vrms cat. III |
Standard: | EN 50470 |
Ambient conditions and EMC: | |
According standards for indoor active energy Meters. | |
Temperature and climatic condition according to EN 62052 11 | |
Ambient conditions and Safety: | |
According standards for indoor active energy Meters. | |
Temperature and climatic condition according to EN 62052 11 | |
Dust/water protection: | IP20 |
Operating temperature: | -15 ... 55°C |
Storage temperature: | -40 ... 70°C |
Enclosure material: | Self-extinguish complying UL94 V |
Indoor Meter: | yes |
Degree of pollution: | 2 |
AC voltage test: | 4 kV |
Distance: | up to 30 m indoors (depending on building materials) |
Weight (with packaging): | 150g (170g) |
Frequency range: | 868.4 MHz, Z-Wave |
Installation: | DIN rail 35mm |
Dimensions (W x H x D): | 36 x 90 x 64mm |
Package dimensions (W x H x D): | 40 x 95 x 80mm |
Colour: | RAL 7035 |
Datasheet
ZMNHTDx
Datasheet
- Systeem
- Z-wave
- Module type
- Ontvanger
- Type module
- Schakelaar
- Gebruik
- Opbouw
Veel gestelde vragen
Hallo kunnen we het Qubino flush 2 relais gebruiken om het tele contact te bedienen wat op een Honeywell chronotherm touch zit? Het relais willen we dan met 230 volt aansluiten op het netwerk en 1 contact gebruiken voor tele aansluitng op I1 en Q1 V ...
Dan is er een interface relais nodig (230V gestuurd).
Je kunt ook een Qubino 1D relais gebruiken. Deze is potentiaalvrij en heeft dus geen extra interface relais nodig.
