Omschrijving

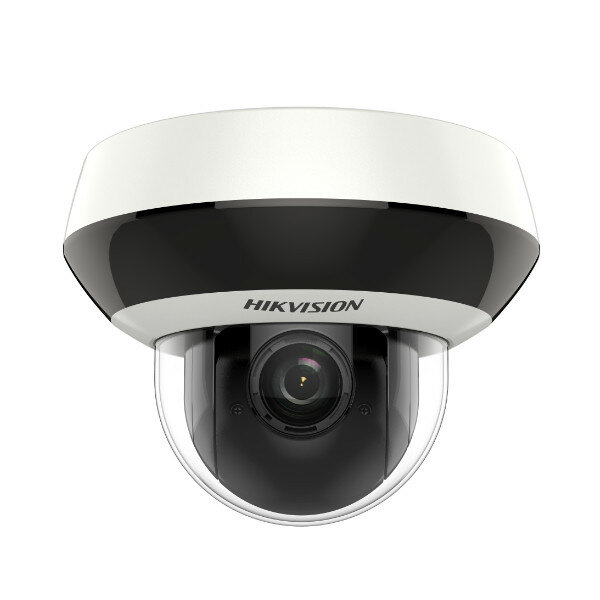

HikVision 2MP PTZ IP Camera 4x zoom 20m IR
Productomschrijving
Camera:
- Beeldsensor: 1/3" Progressive Scan CMOS
- Aantal pixels: 1920x1080
- Minimale verlichting:
- 0.005Lux/F1.6 in kleur, 0Lux met IR aan
- Zwart/wit: 0.001Lux/F1.6, 0Lux met IR aan
- Sluitersnelheid: 1/1s tot 1/100.000s
- Ruisonderdrukking: 3D DNR
- WDR: 120dB
- Infrarood: tot 20m, SmartIR
Lens:
- Lens type: Motorzoomlens / Vaste Iris
- Brandpuntsafstand: 2.8-12mm
- Optische zoom: 4x
- Maximale opening: F2.7
- Horizontale openingshoek: 34-109°
- Focusbediening: automatisch, semi-auto, handmatig
Pan/Tilt/Zoom:
- Pan/tilt bereik: pan 0°~330° continu, tilt 0°~90°
- Preset snelheid: pan 0.1°/s~100°/s, tilt 0.1°/s~100°/s
- Presets: 300
Compressie:
- Compressie:
- Main stream: H.265+/H.265/H.264+/H.264
- Substream, third stream: H.265/H.264/MJPEG
- Bitrate: 32Kbps-16384Kbps
- Audio compressie: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Audio bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
Intelligentie:
- IVS: Line crossing, Intrusion, Region entrance, Region exiting, Unattended baggage detection, Object removal detection
- Audio exception detecion
- Face detection
- Region of interest: 2 gebieden voor mainstream, substream, third, fourth, fifthstream, dynamic face tracking
Video:
- Framerate:
- Main Stream: 1920x1080,1280x960,1280x720 (1-25fps)
- Sub Stream: 704x576,640x480,352x288 (1-25fps)
- Third Stream: 1280x720,704x576,640x480,352x288 (1-25fps)
- Tegenlichtcompensatie: BLC/WDR (120dB)/HLC
Interface:
- Audio: 1 input, 1 output
- SD-kaart: tot 256GB
Overige:
- Werkingstemperatuur: -20 tot 60 graden
- Voeding: DC 12V/1A, PoE
- Verbruik: max. 12W
- Onvif/ISAPI
- Vandaalbestendigheid: IK10
- Waterdichtheid: IP66
- Materiaal: aluminium alloy
- Afmetingen: Ø130.7x101.7mm
Datasheet
2DE2A204IW-DE3
2 kg
6954273666392
Datasheet
- Uitvoering
- Dome
- Bescherming
- Buiten
- Lens
- Draaibare lens (PTZ)
- MegaPixels
- 2MP
