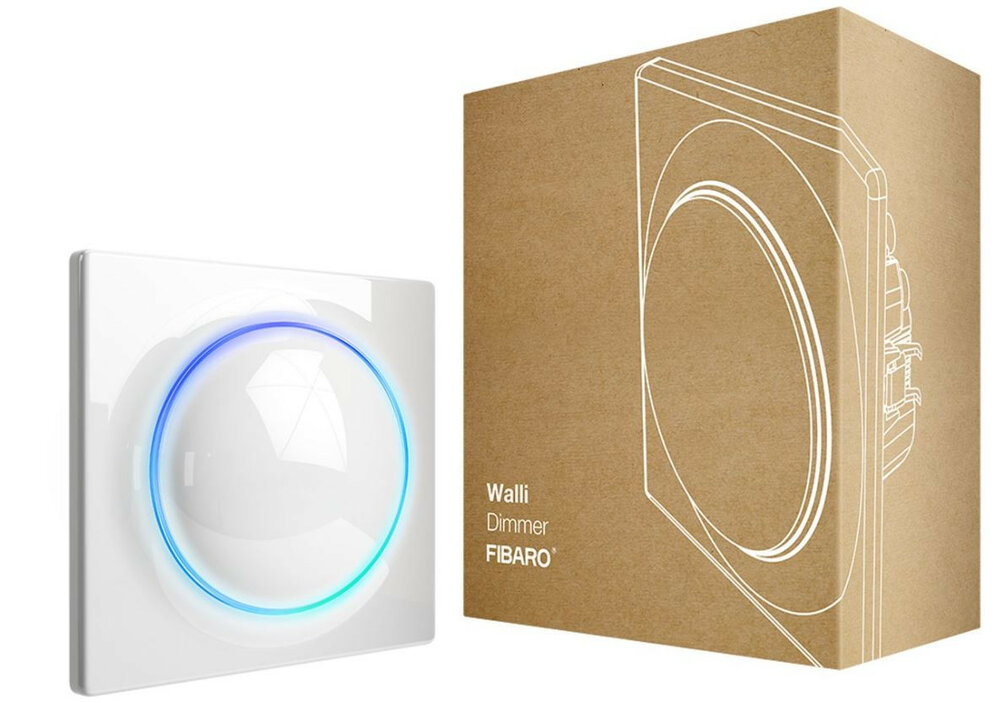

FIBARO - Walli Dimmer

FIBARO - Walli Dimmer

FIBARO Walli Dimmer is een slimme wanddimmer die is ontworpen om de lichtbron via het de Z-Wave controller te regelen maar ook locaal op de dimmer zelf.

Het meet het actieve vermogen en de energie die wordt verbruikt door de gecontroleerde belasting.

Te gebruiken in een zwave controller zoals: Fibaro HC2, Fibaro HCL en Domoticz.

Specifications

Power supply	110-230V~ 50/60 Hz
Compatible load types		Resistive loads Conventional incandescent and halogen light sources
		Resistive-capacitive loads Fluorescent tube lamp (compact / with electronic ballast), electronic transformer, LED
		Resistive-inductive loads Ferromagnetic transformers
Rated load current	0.22A-1.52A – resistive loads (incandescent and halogen) 0.22A-1.3A – resistive-capacitive loads (fluorescent tube lamp, electronic transformer, LED) 0.22A-1.3A – resistive-inductive loads (ferromagnetic transformers) 0.022A-0.22A – with Bypass 2: fluorescent tube lamp or LED
Active element	semiconductor electronic switch ε
Recommended external overcurrent protection	10A type B circuit breaker (EU) 13A type B circuit breaker (Sweden)
For installation in boxes	Ø = 60mm, depth ≥ 40mm
Recommended wires	cross-section area between 1.5-4.0mm2, stripped 12-12.5mm of insulation
Operating temperature	0–35°C
Ambient humidity	10–95% RH without condensation
Radio protocol	Z-Wave (500 series chip)
Radio frequency band	868.0–868.6MHz; 869.7–870.0MHz
Max. transmitting power	+6dBm
Range	up to 50m outdoors up to 40m indoors (depending on terrain and building structure)
Dimensions (Height x Width x Depth)	86 x 86 x 51 mm
Compliance with EU directives	RoHS 2011/65/EU RED 2014/53/EU

Radio frequency of individual device must be same as your Z-Wave controller. Check information on the box or consult your dealer if you are not sure.
