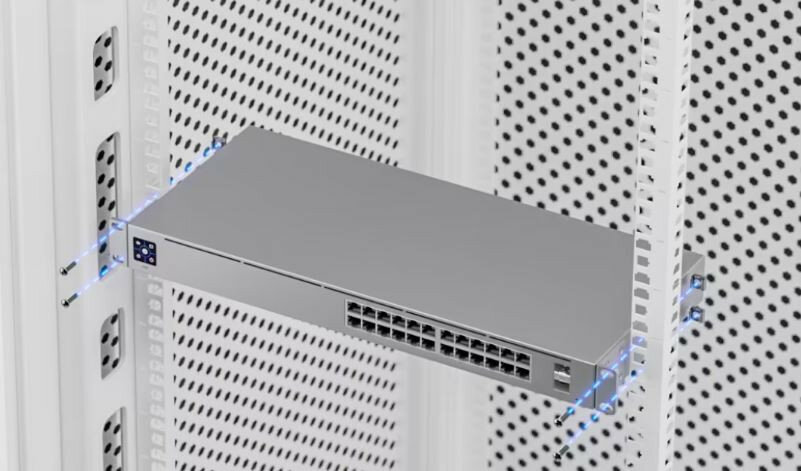

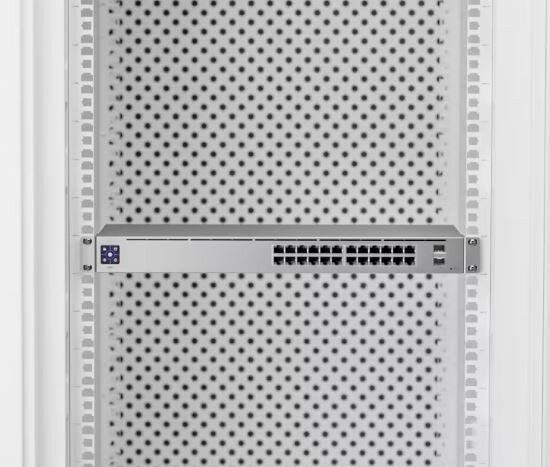

Unifi - 24 x GbE poort layer 2 switch - 2 x 1G SFP poorten

Unifi - 24 x GbE poort layer 2 switch - 2 x 1G SFP poorten

Breidt nu je Unifi installatie uit met deze stille en snelle Layer 2 switch.
Opnemen in je Unifi installatie is eenvoudig, inclusief het gebruiken van verschillende VLANs en allocatie van netwerken per poort.

Technical Specifications

Mechanisch

• Maten 442 x 200 x 44 mm
• Gewicht    2.7 kg
• Materiaal   SGCC steel

Hardware

• Management interface Ethernet In-Band
• Networking interface (24) GbE RJ45 ports
• (2) 1G SFP ports
• Total non-blocking throughput 26 Gbps
• Switching capacity 52 Gbps
• Forwarding rate 38.69 Mpps
• Power method Universal input, 100—240V AC, 50/60 Hz
• Power supply AC/DC, internal, 36W
• Supported voltage range 100—240V AC
• Max. power consumption 25W
• ESD/EMP protection Air: ± 16kV, contact: ± 12kV
• LCM display (1) 1.3" touchscreen
• Button Factory reset
• Ambient operating temperature -5 to 45° C (23 to 113° F)
• Ambient operating humidity 10 to 90% noncondensing
• Certifications CE, FCC, IC
• Switching Features

• Layer 2 features IGMP snooping

• STP / RSTP with priorities and port-level disable
• Port isolation
• Storm control
• Voice VLAN
• Port mirroring
• LACP port aggregation
• Multicast / broadcast rate limiting
• MAC address blocking
• Flow control
• 802.1X control
• Jumbo frames
• Proprietary loop protection
• DHCP snooping / guarding
• Egress rate limit
• LLDP-MED
• Port restricted by MAC

In de doos:

• Unifi USW-24 switch
• 19" rack bevestiging beugels
• Voedingskabel
• Bevestigingsmateriaal
